Zigbee & Wi-Fi & MODBUS TUYA Thermostat for Fan Coil Unit, 2P/4P, Cooling/Heating Function,RS485 95-240V, Smart HVAC Control

Wide Voltage Range

Operating efficiently within a wide voltage range of 95-240V, this thermostat ensures compatibility with various power sources.

RS485 Communication

The device supports RS485 communication, providing stable data transmission for optimal performance.

2P/4P Fan Coil Unit Support

Designed to support both 2P and 4P fan coil units, this thermostat offers flexibility for different HVAC systems.

Zigbee & Wi-Fi Connectivity

Enjoy seamless connectivity with Zigbee and Wi-Fi technologies, ensuring reliable control over your home's climate.

Smart HVAC Control

Effortlessly manage your heating, ventilation, and air conditioning systems with ease using this smart thermostat.

Zigbee & Wi-Fi & MODBUS TUYA Thermostat for Fan Coil Unit, 2P/4P, Cooling/Heating Function, RS485 95-240V, Smart HVAC Control 12VAC 24VAC 95-240VAC.For Fan Coil Unit Work with Alexa Google Home YANDEX Alice

Note:If you choose Zigbee thermostat, Zigbee gateway is a must product, if you don't have a gateway, please click to buy

Note: zigbee, yandex version will have some compatibility issues, this is related to the gateway, the background will continue to be updated,

Note: WIFI, zigbee and modbus are not compatible

Main Features:

1. Functional Fan Coil Unit System with Tuya ZigBee Hub（shojzj）

2. Bezel-less and Windowless Touch Control

3. Tuya APP/Voice Assistants Compatible with Child Lock and Sensor Selection

4. Smart Phone APP Remote Control

5. 5+1+1 Six Periods Programmable

Package List:

Thermostat*1

Screws*2

User Guide*1

Wall plate*1

QC Passed*1

Your new thermostat will provide uniform and comfortable

temperature control throughout every room in your property. We

bring together technology, craftsmanship and the highest quality

materials to provide you with a safe, reliable product combined with

sleek, contemporary design.

Please read this installation/progr amming manual for comprehensive

instructions on installing and operating your thermostat. Please also

ensure a suitably qualified person installs your thermostat and

complies with all local regulations.

5+1+1 Six Periods Programmable:

Supports full auto programs or manual hold mode 5+1+1 days weekly schedule of 6 stages daily,providing you with the maximum convenience for different situation,which clarifies the energy-saving, cost-saving, and environment-friendly to a real-sense;includes full 2-year warranty and 60-day refund guarantee for complete satisfaction.

On Appearance

1.86mm hidden box and European 60mm round box is suitable.

2. Full white appearance, perfectly integrated into your family.

3. LED matrix light, simple display, energy saving, protect your eyes.

4. Touch buttons to make simple operation.

5. Amazing Silver Frame opens your modern life.

6. The visiable thickenss above the wall is only 12mm.

7. Interlock to connect gives you easy installation.

On Functionality

1.0.5 C Acuracy keeps temperature within the level you set.

2.Data memory when power is off.

3.5+1+1 six periods programmable maximize comfort and economy.

4. Temporary programmable.

5. All setting languages sunchronize your time zone, address and

language.

6. No limit to add thermostats in App and support Smart Scene...

7. Creat thermostat group to Centralized control.

8. Integrate with Amazon Echo, Google Home, Yandex Alice .

9. Support device sharing.

Remotely control your home temperature to attain advanced comfort via our Tuya&Smart life APP with hub required,easy to operate on your smart phones anywhere you are,supporting the creation of product local groups/shares to achieve unlimited centralized control of the number of products/multi-terminal control for real-sensing intelligence.

APP/Voice Assistants Compatible with Child Lock and Sensor Selection:

Working with Alexa Google Home offers simple voice command control;New arrival is updated with the child lock,deadzone Temp. and sensor selection functional in the APP.

Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ

Fan Relay Amps Resistance: 5A; Inductive: 3A

Valve Relay Amps Resistance: 3A; Inductive: 1A

Sensor: NTC3950, 10K

Set Temp. Range: 5 -35 ℃

Accuracy: ±0.5 ℃

Dispaly Temp. Range: 5 ~ 99℃

Ambient Temp.:0~45 ℃

Ambient Humidity: 5 ~ 95 % RH (Non Condensing)

Storage Temp.:-5~ 45 ℃ Timing Error: < 1%

Power Consumption: <1.5W

Shell Material: PC +ABS ( Fireproof)

Installation Box: 86 * 86mm Square or European 60mm Round Box

Wire Terminals: Wire 2 X 1.5 mm² or 1 x2.5 mm²

Protection Class: IP20

Buttons: Capactive Touch Buttons

INSTALLATION

Your thermostat is suitable for installation within a standard 86mm
pattress box or European 60mm pattress box.
Step 1. Keep the electricity off. See Fig 1.
Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2. .

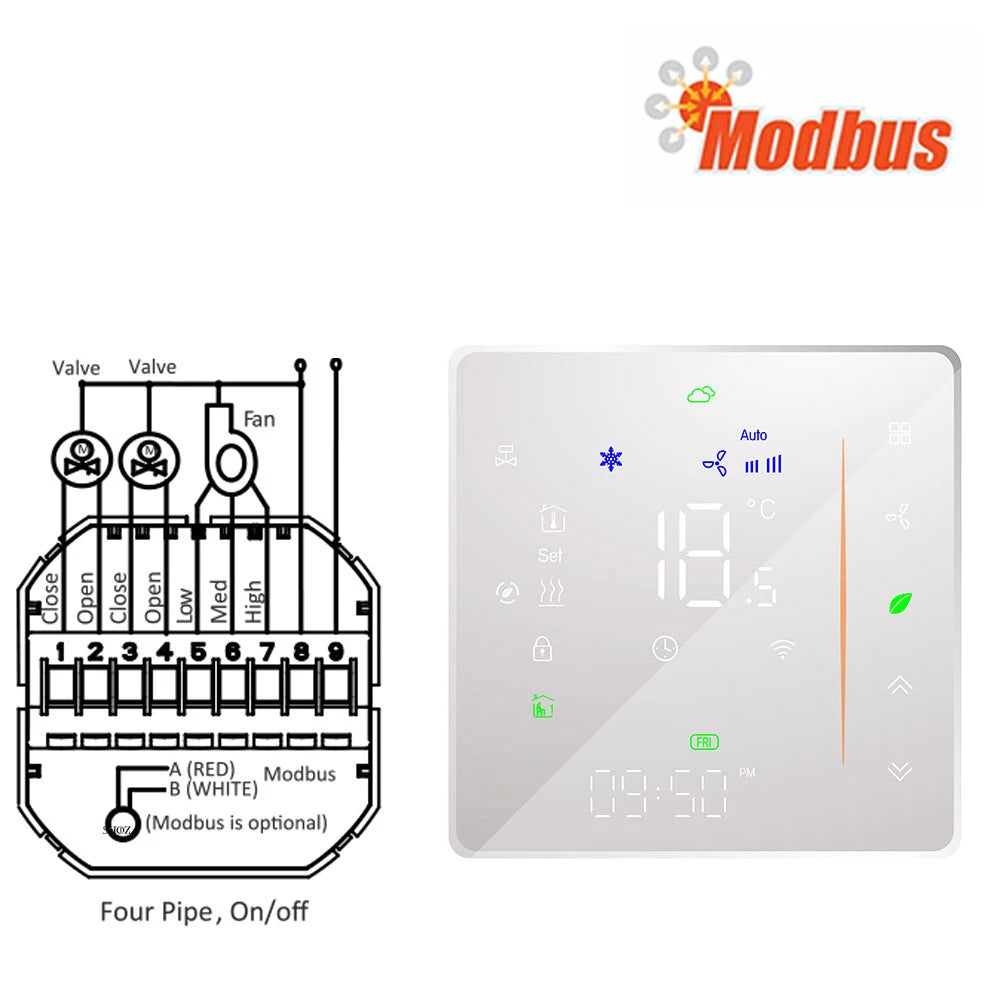

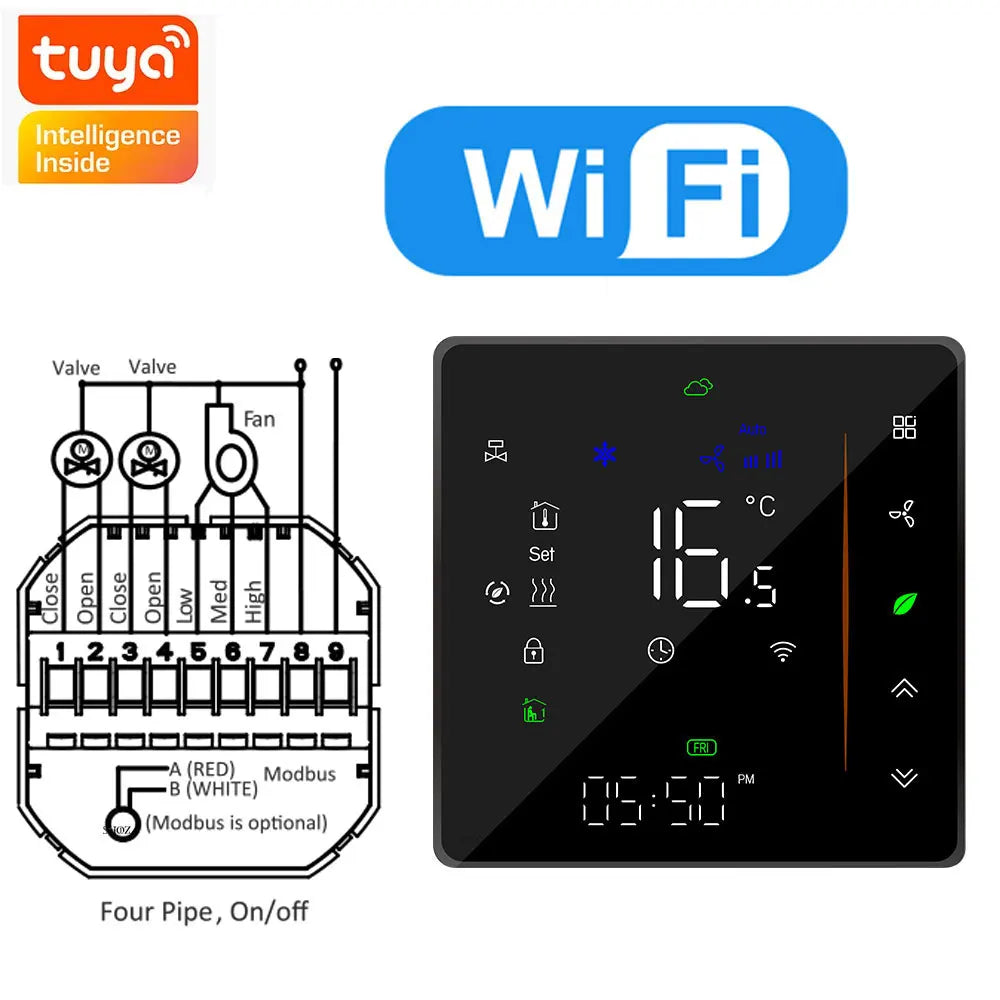

Step 3. Connect power supply, load into the appropriate terminals.(see "Wiring your thermostat" for details and Fig 3).
Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.
Step 6. Installation complete. See Fig 6.
